Eurosens Direct 1500, 3000, 5000

Eurosens Direct 1500, 3000, 5000

Category: Tags: ,

Description

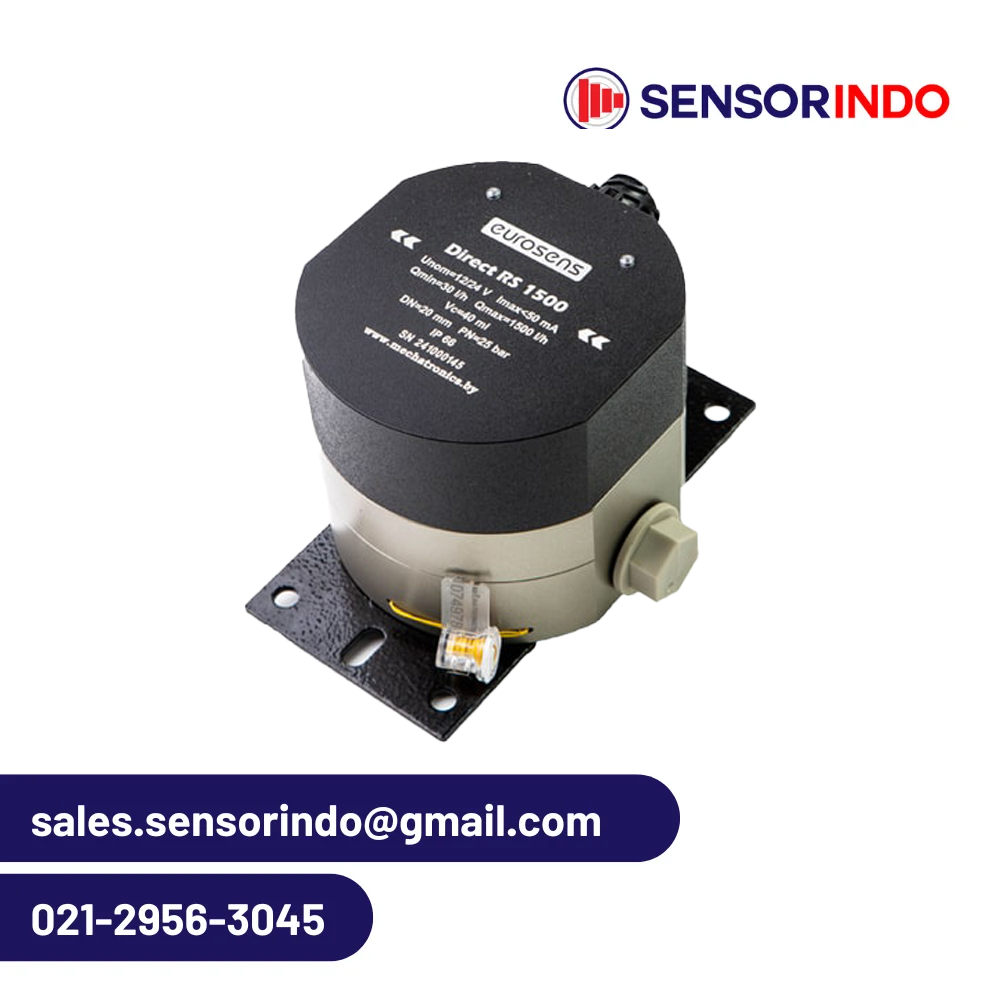

Eurosens Direct 1500, 3000, 5000  fuel flowmeters can be installed on ships, gensets, locomotives, burners, and other diesel consumers with a fuel flow rates of 30 – 5000 lph.

High-performance Eurosens Direct meters provide not only  fuel consumption  in liters but many other parameters : instant fuel consumption, consumption and and operation time for different modes, tampering detection, etc.

Fitur

High-performance Eurosens Direct 1500 , 3000 and 5000 models are the successors of Eurosens Direct model. All Eurosens fuel flowmeters have built-in Hall sensors, anti-friction coating, 2-year warranty. Some other features:

  • Fuel flow measurenent in the range up to  5000 LPH.
  • Digital interfaces (RS485/MODBUS/CAN/NMEA2000) and simple pulse output.
  • Measuring chamber can be made of brass or duralumin.
  • Threaded and flange connections available.
  • Strong electronic circuit protection.
  • Models with built-in display and battery.

Spesifikasi

  • Power voltage, V: 10-50
  • Reverse polarity protection: Yes
  • Maximum measurement error: ±1%
  • Temperature range: -40 — +85
  • Output interfaces: RS485, K-Line, CAN
  • Service interface: ISO 9141 (K-Line)
  • IP protection class: IP 67
  • Measurement range:
    • 30-1500 Liters/hour (Direct 1500)
    • 60-3000 Liters/hour (Direct 3000)
    • 250-5000 Liters/hour (Direct 5000)
