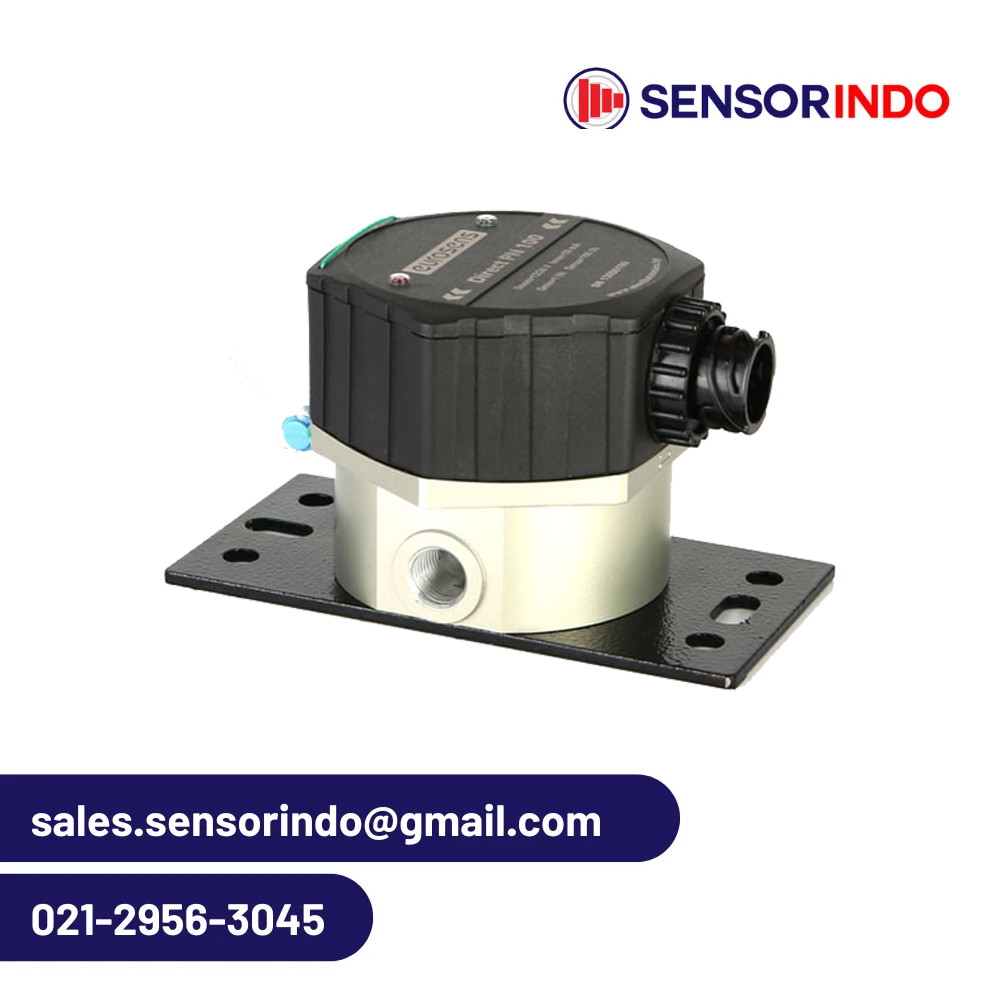

Eurosens Direct

Description

Single-chamber fuel meter Eurosens Direct with a built-in microprocessor and anti-magnetic protection is used to measure fuel consumption of diesel engines, boilers, burners and other consumers in the range from 1 to 500 liters per hour.

Eurosens Direct provides not only fuel consumption in liters but also other important parameters as operation time and fuel consumption for different modes, tampering detection, etc.

Fitur

  • The set of Hall-effect sensors (instead of reed switch) provides magnetic immunity.
  • Hard aluminum alloy with anti-friction coating.
  • Versions with display to be used as stand-alone units.
  • Temperature compensation to increase data accuracy.
  • Digital interfaces  RS485/MODBUS/CAN SAE J1939/simple pulse output.
  • 2-year warranty without fuel flow limitation.

Spesifikasi

  • Power voltage, V: 10-50
  • Reverse polarity protection: Yes
  • Maximum measurement error: ±1%
  • Temperature range: -40 — +85
  • Output interfaces: RS485, K-Line, CAN
  • Service interface: ISO 9141 (K-Line)
  • IP protection class: IP 67
